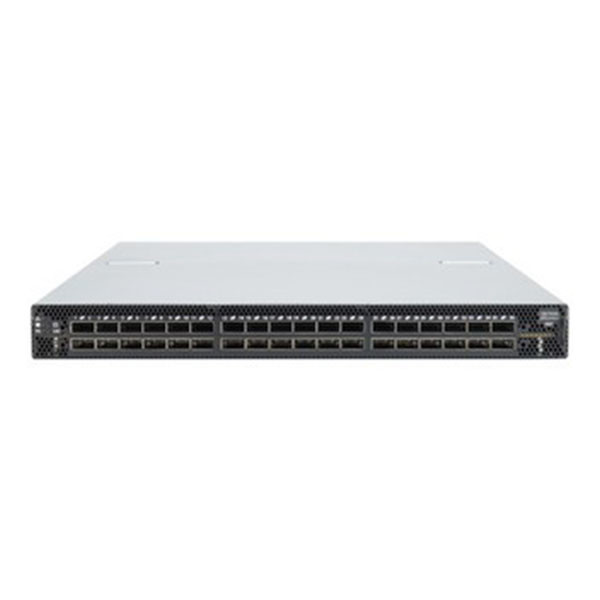

Mellanox MSB7890 - ES2F InfiniBand EDR 100Gb/s Switch

Model Number : MSB7890-ES2F

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, D/P, D/A, Western Union,

Supply Ability : 10000 set per month

Delivery Time : 3-5

Packaging Details : box

Product Name : Mellanox MSB7890 InfiniBand EDR 100Gb/s Switch

Keywords : Mellanox MSB7890 - ES2F

Products Status : Stock

Operation Mode : Smart Switch

Item Dimensions LxWxH : 35 x 24 x 6 inches

International Protection Rating : IP54

Unit Count : 1.0 Count

Number of Items : 1

Contact Now

Mellanox MSB7890 - ES2F InfiniBand EDR 100Gb/s Switch

Description

Mellanox provides the world’s first smart switch, enabling in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™ technology. SB7890 has the highest fabric performance available in the market with up to 7.2Tb/s of non-blocking bandwidth with 90ns port-to-port latency.

Key Features

FEATURES – Performance • 36 x EDR 100Gb/s ports in a 1U switch
7.2Tb/s aggregate switch throughput
90ns switch latency
122W typical power consumption – Optimized design
1+1 redundant & hot-swappable power
N+1 redundant & hot-swappable fans
80 gold+ and energy star certified power supplies – Advanced design
Adaptive routing
Congestion control
VL2VL mapping
Collective offloads (Mellanox SHARP technology)

Product Spectification

Item model number	MSB7890 - ES2F
Item Weight	2.12 pounds
Manufacturer	36 100Gb/s non-blockingMellanox Technologies
ASIN	B0791J9PMR

Q: Do I need to buy SFP modules for FutureMatrix S5736-S48S4XC switch?
A: Yes, as S5736-S48S4XC is an optical switch, the optical ports will not able to work without SFP module, if you don’t have SFP module, you will need to purchase addtional SFP module.
Q: Does FutureMatrix S5736-S48S4XC support Redundant power supply?
A:Yes, 1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Q: Can I use compatible SFP/SFP+ module on FutureMatrix S5736-S48S4XC switch?
A:Yes, but the switch may generate alarm, however, it will not affect normal use.
Q: Can I get technical support from Thunder-link.com if we purchase FutureMatrix S5736-S48S4XC from you?
A: Yes, Thunder-link.com has experienced technical team on switches, however, you may need to purchase
technical support service from us as by default we only provide one year hardware warranty.
